SEU Service Entrance Cable (UL 854): A Complete Technical Guide

Every electrical installation begins when utility power enters a building from an outside utility pole, with the cable used as its conduit between there and its distribution system holding immense responsibility. From outdoor conditions through moisture resistance and sunlight degradation to mechanical handling during installation, UL 854 SEU cable was developed precisely for this demanding role. At Dynamic Cables Limited, we manufacture it to the highest standards of the UL 854 specification, backed by 39 years of wire and cable production experience and three ISO certified manufacturing facilities in Jaipur, Rajasthan.

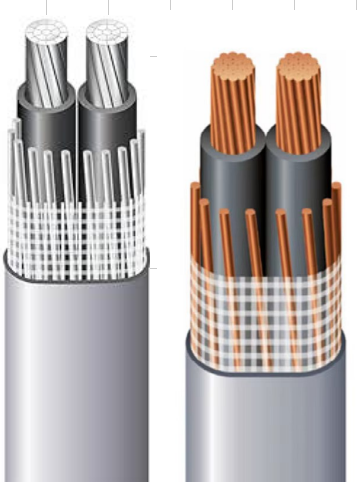

What is UL 854 Service Entrance Cable?

UL 854 is an Underwriters Laboratories product standard that governs the design, materials, construction, and testing requirements for service entrance cable. The designation SEU stands for Service Entrance Cable, Style U, which refers to the unarmoured, overall jacketed construction used for overhead service entrance applications from the utility distribution pole to the meter base. The cable may also be used for feeder and branch circuit wiring within a structure wherever the National Electrical Code (NEC) permits.

One of the most practical characteristics of SEU cable is its flat profile. Unlike round multi conductor cables, the flat cross section allows the cable to lie flush against building surfaces such as exterior walls and fascia boards, making routing cleaner and reducing exposure to mechanical damage during installation.

Applicable Standards and Compliance Framework

Dynamic Cables Limited's SEU service entrance cable conforms to UL 854, UL 44, UL 2556, and UL 1581. Conductor materials comply with ASTM B1, B2, B3, B8, and B835 for copper conductors and ASTM B800, B801, and B836 for aluminium alloy conductors per ICEA S-95-658 / NEMA WC 70 standards. Our facilities hold ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 certifications, with CE certification and type testing from CPRI, ERDA, and TAG Corporation.

Cable Construction in Detail

Phase Conductors

The two phase conductors in our SEU cable are available in both copper (Class B compressed/compact stranded per ASTM B1, B2, B3, B8) and aluminium (1350 or AA-8000 series alloy per ASTM B800) in sizes 8 AWG and larger.

Insulation

Phase conductors are insulated with thermoset cross linked polyethylene (XLPE) compound of XHHW-2, RHW-2, or USE-2 designation. This delivers a low coefficient of friction and a sustained operating temperature of 90°C in both wet and dry environments.

Concentric Neutral Conductor & Overall Jacket

Bare neutral wires are helically wound over the insulated phase assemblies and wrapped with glass reinforced tape, creating a concentric neutral layer. An overall PVC jacket in sunlight resistant grey provides protection against UV radiation, moisture, and mechanical abrasion.

Electrical and Temperature Ratings

UL 854 SEU cable from Dynamic Cables Limited is rated at 600V and carries a conductor temperature rating of 90°C for both wet and dry locations. Ampacity ratings range from 45 amps (8-8-8 configuration) to 205 amps (4/0-4/0-4/0 configuration) as per NEC Table 310.15.

Sunlight Resistance and Flame Performance

Our SEU cable jacket compound is specifically formulated to resist UV degradation over years of direct sun exposure and satisfies flame propagation requirements defined in applicable UL standards.

Installation Guidance and NEC Compliance

Under the National Electrical Code, SEU cable is approved primarily for use as service entrance conductors for overhead service drops from utility pole to meter base, and for feeder/branch circuit wiring under NEC Article 338. Surface mounting on building exteriors is clean and secure thanks to its flat profile.

Frequently Asked Questions

Q1. What is the difference between SEU cable and SER cable?
SEU (Style U) has a flat profile and concentric neutral designed primarily for overhead service entrance drops. SER (Style R) has a round construction used for panel feeder and branch circuit wiring inside a structure. Dynamic Cables manufactures SEU under UL 854.

Q2. Is UL 854 SEU cable suitable for outdoor and wet location installations?
Yes. Our UL 854 SEU cable carries a 90°C rating for both wet and dry locations, with a sunlight resistant grey PVC jacket engineered to resist UV degradation.

Q3. Can Dynamic Cables supply UL 854 SEU cable with aluminium conductors as well as copper?
Yes. Available in both copper (ASTM B1-B8) and AA-8000 / 1350 series aluminium alloy (ASTM B800) in sizes 8 AWG through 4/0 AWG.

Q4. What certifications support UL 854 SEU cable from Dynamic Cables Limited?
Manufactured under UL 854, ISO 9001/14001/45001, CE certified, and type tested by accredited laboratories CPRI, ERDA, and TAG Corporation.

Q5. What reel lengths and configurations are available?
Standard reel lengths of 500, 1000, 2500, and 5000 feet in configurations ranging from 8-8-8 to 4/0-4/0-4/0.

Conclusion

UL 854 SEU service entrance cable is a purpose engineered solution for overhead service drop applications. Dynamic Cables Limited manufactures this cable to full UL 854 compliance backed by 39 years of manufacturing excellence.
