UL 854 SEU Cable
UL 854 SEU CABLE

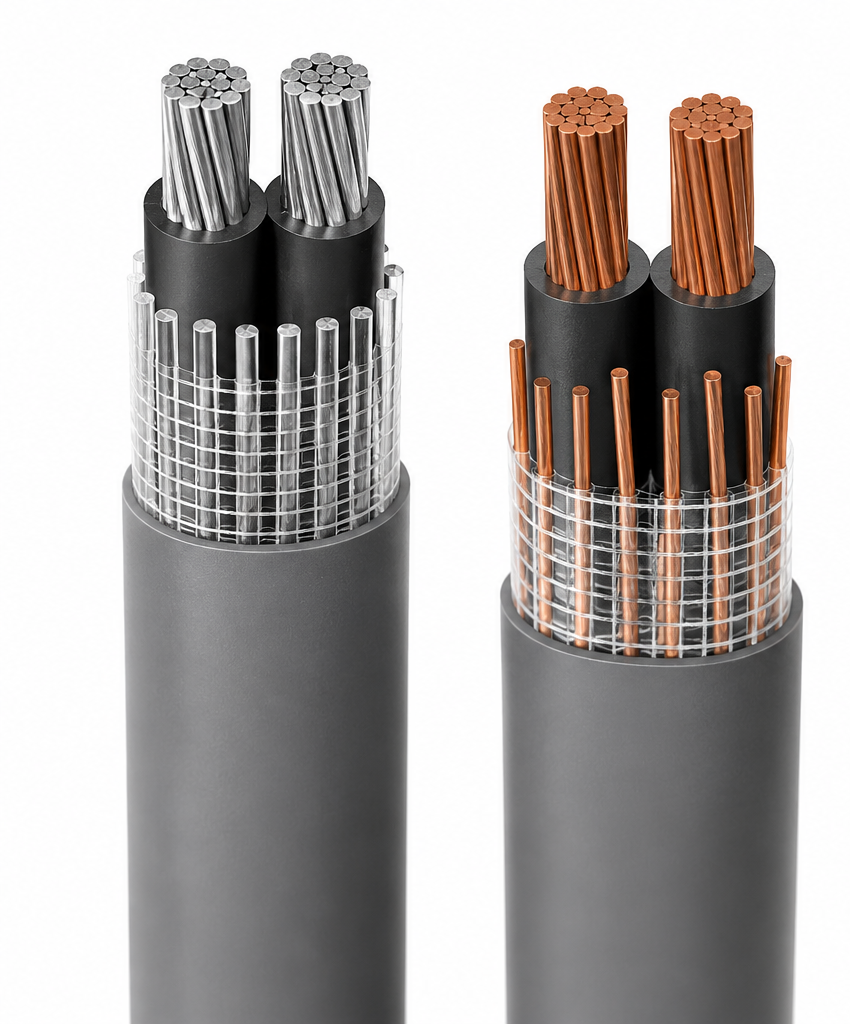

Dynamic Cables' SEU cable is primarily used for overhead service entrance applications from the utility pole to the meter base, and for feeder or branch-circuit applications where permitted by the NEC. Its flat profile allows easy installation along building surfaces.
The cable is rated 600 V and is suitable for use in wet or dry locations at conductor operating temperatures up to 90°C.
Wet / Dry
- UL 854 – Service-Entrance Cables
- UL 44 – Thermoset-Insulated Wires and Cables
- UL 2556 – Wire and Cable Test Methods
- UL 1581 – Reference Standard for Electrical Wires, Cables and Flexible Cords
- ASTM B8 / B800 / B801 / B836 – Concentric-Lay-Stranded Aluminum Conductors
- ICEA S-95-658 / NEMA WC 70 – Power Cables Rated 2000 Volts or Less
- NEC (NFPA 70) – National Electrical Code

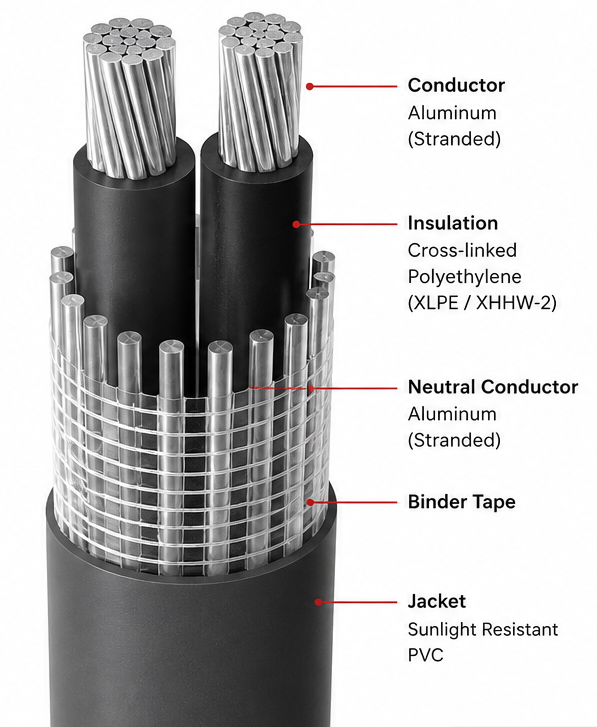

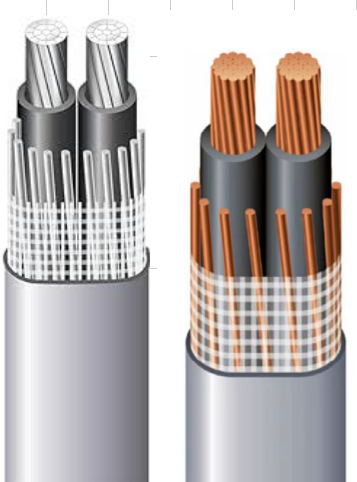

Phase Conductors with a concentric neutral conductor wrapped in a Glass – reinforced tape, overall PVC Jacket.
Conductor
Class B compressed/compact Soft or Annealed, Medium & Hard drawn stranded bare copper as per ASTM B1, B2, B3, ASTM B33 & ASTM B8
OR
Aluminum – Aluminum 1350 series Alloy/AA-8000 series alloy compacted conductor, Class B stranding as per ASTM B800.
Size: 8 AWG & Larger
Insulation
Low Coefficient of friction, Abrasion, Moisture, & Heat Resistant Thermoset cross-linked polyethylene (XLPE) Type XHHW-2./RHW-2/USE-2.

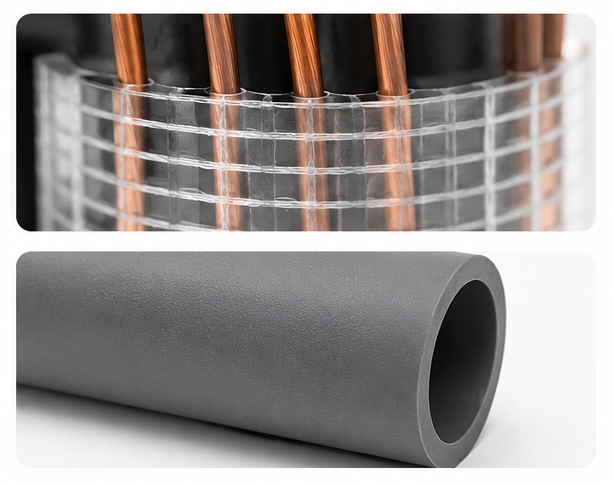

Jacket
Sunlight resistance Gray Polyvinyl Chloride (PVC)
- Sunlight Resistance
- Flame Test Rated
- CT Rated for 1/0 AWG and larger
|
Conductor Size
(AWG/kcmil) |
Insulated Conductor
|
Bare Conductor Size
(AWG/kcmil) |
Insulation Thickness Nominal
(mils) |
Jacket Thickness Nominal
(mils) |
Overall Size
(Inches) |
Net Weight
(lbs./1000ft.) |
Max DC Resistance @ 20°C
(Ω/1000ft.) |
Ampacity * at 90°C
|
|
|---|---|---|---|---|---|---|---|---|---|
|
No. of Conductor
|
No of Strands
|
||||||||
|
8-8-8-
|
2 x 8
|
7
|
8
|
45
|
30
|
0.40 × 0.59
|
108
|
1.07
|
45
|
|
6-6-8-
|
2 x 6
|
7
|
8
|
45
|
30
|
0.42 × 0.66
|
135
|
0.674
|
55
|
|
6-6-6-
|
2 x 6
|
7
|
6
|
45
|
30
|
0.43 × 0.68
|
145
|
0.674
|
55
|
|
4-4-6-
|
2 x 4
|
7
|
6
|
45
|
30
|
0.48 × 0.79
|
190
|
0.424
|
75
|
|
4-4-4-
|
2 x 4
|
7
|
4
|
45
|
30
|
0.50 × 0.80
|
205
|
0.424
|
75
|
|
2-2-4-
|
2 x 2
|
7
|
4
|
45
|
30
|
0.57 × 0.92
|
265
|
0.267
|
100
|
|
2-2-2-
|
2 x 2
|
7
|
2
|
55
|
30
|
0.59 × 0.95
|
290
|
0.267
|
100
|
|
1-1-1-
|
2 x 1
|
19
|
1
|
55
|
30
|
0.65 × 1.07
|
370
|
0.211
|
115
|
|
1/0-1/0-2
|
2 x 1/0
|
19
|
2
|
55
|
30
|
0.66 × 1.10
|
400
|
0.168
|
135
|
|
1/0-1/0-1/0
|
2 x 1/0
|
19
|
1/0
|
55
|
30
|
0.69 × 1.14
|
439
|
0.168
|
135
|
|
2/0-2/0-1
|
2 x 2/0
|
19
|
1
|
55
|
30
|
0.72 × 1.20
|
480
|
0.133
|
150
|
|
2/0-2/0-2/0
|
2 x 2/0
|
19
|
2/0
|
55
|
30
|
0.74 × 1.22
|
520
|
0.133
|
150
|
|
4/0-4/0-2/0
|
2 x 4/0
|
19
|
2/0
|
55
|
30
|
0.88 × 1.47
|
700
|
0.0836
|
205
|
|
4/0-4/0-4/0
|
2 x 4/0
|
19
|
4/0
|
55
|
30
|
0.89 × 1.48
|
770
|
0.0836
|
205
|
Note:
1. All values are nominal and subject to correction based on actual design.
2. COLORS – Core: Black, Black/Red stripe. Other color combinations upon request. Jacket: Gray
3. REEL – Available in 500, 1000, 2500, 5000 ft. reels.
4. *Ampacity of Conductor are based on NEC (NFPA 70).
Technical Specifications
| Voltage Rating | 600 V |
| Temperature Rating | 90°C Wet / Dry |
| Conductor | Aluminum (AAC) or Copper (Options available) |
| Insulation | Cross-linked Polyethylene (XHHW-2) |
| Neutral Conductor | Aluminum (cabled) |
| Jacket | Sunlight Resistant PVC |
| Cable Type | SEU – Service Entrance Use |
| Installation | Overhead – From Utility Pole to Meter Base |
| Application | Service Entrance, Feeders, Branch Circuits (as permitted by NEC) |
