UL 44 THERMOSET INSULATED WIRE

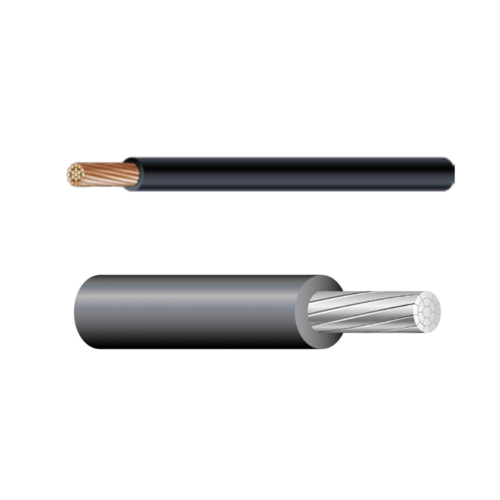

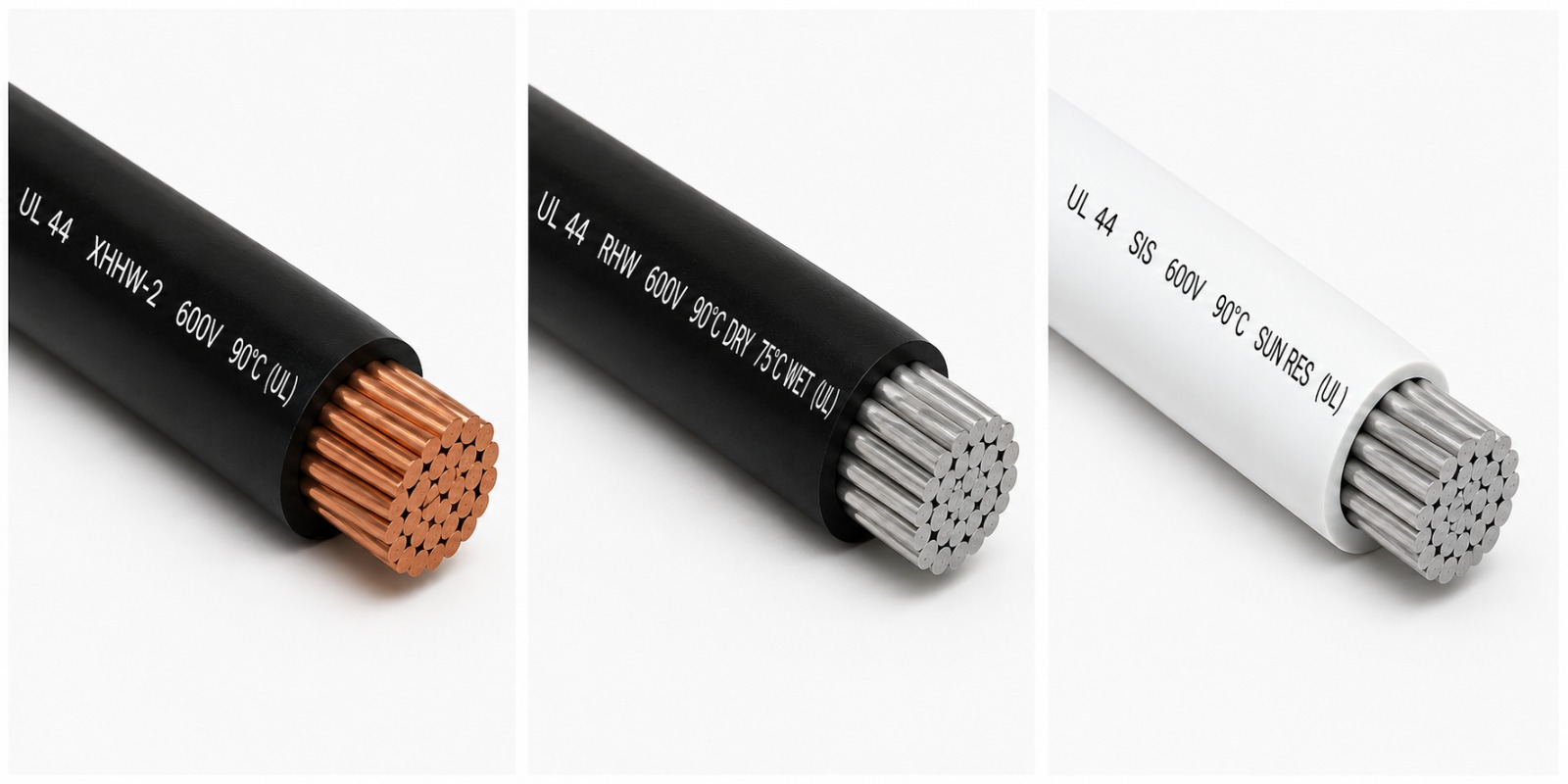

Dynamic Cables' UL 44 Thermoset-Insulated Wire (XHHW-2 / RHH / RHW-2) is a 600V/1000V general purpose building wire for use principally in conduit or other recognized raceways. Superior insulating toughness and chemical resistance make it ideal for industrial applications.
In dry or wet areas, the maximum working temperature shall not exceed 90°C. In open air, raceways, or cable trays, it complies with the NEC. This product is designed to be installed without the use of a pulling lubricant.
Wet / Dry
- UL 44 – Thermoset-Insulated Wires and Cables (File Number E533878)
- ASTM B3 – Soft or Annealed Copper Wire
- ASTM B8 – Concentric-Lay-Stranded Copper Conductors
- ASTM B800 / B801 / B836 – Aluminum Alloy Conductors
- UL 2556 – Wire and Cable Test Methods (VW-1 & Flame Test)
- NEC (NFPA 70) – National Electrical Code
Thermoset cross-linked polyethylene (XLPE) insulated conductor, available in copper or aluminum.
Conductor
Copper – Class B compressed/compact stranded bare copper per ASTM B3 and ASTM B8.
OR
Aluminum – AA-8000 series alloy compacted conductor, Class B stranding, per ASTM B801.
Size: 8 AWG – 1000 kcmil
Insulation
Low coefficient of friction, abrasion, moisture, and heat resistant thermoset cross-linked polyethylene (XLPE) – Type XHHW-2 / RHH / RHW-2.
Available Colors
Black, White, Red, Orange, Yellow, Green, Blue, Purple, Brown, Grey.
- Sunlight Resistance
- VW-1 Flame Rating
- Footage Guarantee
- Meets Cold Bend and Cold Impact Tests at -25°C
- “FOR CT USE” for 1/0 AWG and Larger
- Suitable for Wet & Dry Locations at 90°C
- Other sizes and stranding options available upon request
|
Conductor Size
(AWG/kcmil) |
No. of Strands
|
XLPE Insulation
Thickness (mm) |
Approx. Cable
Dimension (mm) |
Allowable Ampacity*
Copper (A) |
Allowable Ampacity*
Aluminium (A) |
Standard Packing
(Feet) |
|---|---|---|---|---|---|---|
8 |
7 |
1.14 |
5.7 |
55 |
45 |
500', 1000', 2500', 5000' |
6 |
7 |
1.14 |
6.6 |
75 |
55 |
500', 1000', 2500', 5000' |
4 |
7 |
1.14 |
7.7 |
95 |
75 |
500', 1000', 2500', 5000' |
3 |
7 |
1.14 |
8.3 |
115 |
85 |
500', 1000', 2500', 5000' |
2 |
7 |
1.40 |
9.1 |
130 |
110 |
500', 1000', 2500', 5000' |
1 |
19 |
1.40 |
10.4 |
145 |
115 |
500', 1000', 2500', 5000' |
1/0 |
19 |
1.40 |
11.3 |
170 |
135 |
500', 1000', 2500', 5000' |
2/0 |
19 |
1.40 |
12.4 |
195 |
150 |
500', 1000', 2500', 5000' |
3/0 |
19 |
1.40 |
13.5 |
225 |
175 |
500', 1000', 2500', 5000' |
4/0 |
19 |
1.40 |
14.9 |
260 |
205 |
500', 1000', 2500', 5000' |
250 |
37 |
1.65 |
16.5 |
290 |
230 |
500', 1000', 2500', 5000' |
300 |
37 |
1.65 |
17.8 |
320 |
260 |
500', 1000', 2500', 5000' |
350 |
37 |
1.65 |
19.0 |
350 |
280 |
500', 1000', 2500', 5000' |
400 |
37 |
1.65 |
20.0 |
380 |
305 |
500', 1000', 2500', 5000' |
500 |
37 |
1.65 |
22.0 |
430 |
350 |
500', 1000', 2500', 5000' |
600 |
61 |
2.03 |
24.7 |
475 |
385 |
500', 1000', 2500', 5000' |
750 |
61 |
2.03 |
27.1 |
535 |
435 |
500', 1000', 2500', 5000' |
1000 |
61 |
2.03 |
31.0 |
615 |
500 |
500', 1000', 2500', 5000' |
Notes:
1. Ampacities per NEC® Table 310.15(B)(16). Adjustment and corrections may apply.
2. 90°C Wet/Dry per NEC Table 310.15(B)(16) for not more than three conductors in raceway based on 30°C ambient temperature.
3. COLORS – Available upon request: Black, White, Red, Orange, Yellow, Green, Blue, Purple, Brown, Grey.
4. REEL – Available in 500, 1000, 2500, 5000 ft. reels.
5. Changes that improve our product will be done without notice. If there is any discrepancy, the applicable standard will prevail.
Technical Specifications
| Voltage Rating | 600V / 1000V |
| Temperature Rating | 90°C Wet / Dry |
| Cold Bend / Cold Impact | -25°C |
| Conductor | Copper (ASTM B3, B8) or Aluminum AA-8000 series alloy (ASTM B801) |
| Insulation | Cross-linked Polyethylene (XLPE) – Type XHHW-2 / RHH / RHW-2 |
| Conductor Size Range | 8 AWG – 1000 kcmil |
| Installation | Conduit, raceways, cable trays – indoor & outdoor, wet or dry locations |
| Standards | UL 44, ASTM B3, B8, B800, B801, B836, UL 2556, NEC (NFPA 70) |
