MV Single Core Copper Armoured Power Cable

MV Single Core Copper & Aluminium Armoured Power Cables

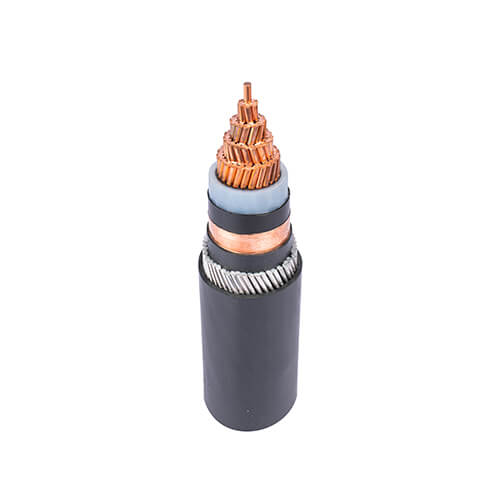

Dynamic Cables manufactures single core cables with a stranded compacted circular aluminium or copper conductor, screened with an extruded semiconducting compound, XLPE insulated, insulation screened with an extruded semiconducting compound followed by copper tape, an extruded PVC inner sheath, a single layer of hard drawn aluminium round wire or flat strip armoured cable construction, and an overall PVC Type ST2 sheath. Sizes range from 25 sq mm to 1000 sq mm, manufactured as per IS 7098 Part 2, IEC 60502, BS 6622, and AS 1429.1.

Request Quote Download Datasheet Contact Us

MV Single Core Copper & Aluminium Armoured Power Cables

Applications

HT XLPE cables are used for power transmission and distribution in all type of industries e.g. petro chemical, fertilizer, steel, cement, metro rail projects, mining, Solar Power plants etc.

Standards

IS 7098-2 / IEC 60502-2 / BS 78622 / AS 1429.1

Construction

MV 1 Core – Stranded compacted circular Aluminium/Copper conductor, conductor screened with extruded semiconducting compound, XLPE insulated, insulation screened with extruded semiconducting compound followed by copper tape, extruded PVC inner sheathed, single layer of hard drawn Aluminium round wire / flat strip armoured and overall PVC Type ST-2 sheathed.

Sizes – 25 sqmm to 1000 sqmm

Features

These cables have very good electrical, thermal and mechanical properties which lead to enhance continuous current carrying capacity. Short circuit rating of these cables are also very good as compared to other type of cables.

These cables can be supplied with improved fire performance characteristics also. The sheath of these cables will be specially formulated to meet the requirements of Flame Retardant (FR) or Flame Retardant Low Smoke & Low Halogen (FRLSH) or Flame Retardant Low Smoke & Zero Halogen (FRLSZH).

Technical Information

SINGLE CORE 6.6 KV (E) XLPE INSULATED ARMOURED CABLES

Nom. Area	Thickness / Dimensions (mm)
	Insulation	Conductor Screen	Insulation Screen	Copper Tape	Inner Sheath	Round Wire Armoured			Flat Strip Armoured
	Insulation	Conductor Screen	Insulation Screen	Copper Tape	Inner Sheath	Armour Wire	Outer Sheath	Overall Diameter	Armour Strip	Outer Sheath	Overall Diameter
(Sqmm)	(Nom)	(Min)	(Min)	(Approx.)	(Min)	(Nom)	(Min)	(Approx.)	(Nom)	(Min)	(Approx.)
25	2.8	0.3	0.3	0.03	0.3	1.6	1.40	20.5	0.8	1.40	18.5
35	2.8	0.3	0.3	0.03	0.3	1.6	1.40	21.5	0.8	1.40	20.0
50	2.8	0.3	0.3	0.03	0.3	1.6	1.40	22.5	0.8	1.40	21.0
70	2.8	0.3	0.3	0.03	0.3	1.6	1.40	24.0	0.8	1.40	22.5
95	2.8	0.3	0.3	0.03	0.3	1.6	1.40	25.5	0.8	1.40	24.0
120	2.8	0.3	0.3	0.03	0.3	1.6	1.40	26.5	0.8	1.40	25.0
150	2.8	0.3	0.3	0.03	0.3	1.6	1.56	28.5	0.8	1.56	26.5
185	2.8	0.3	0.3	0.03	0.3	1.6	1.56	30.0	0.8	1.56	28.5
240	2.8	0.3	0.3	0.03	0.4	2.0	1.56	33.0	0.8	1.56	31.0
300	3.0	0.3	0.3	0.03	0.4	2.0	1.56	35.5	0.8	1.56	33.0
400	3.3	0.3	0.3	0.03	0.4	2.0	1.72	39.5	0.8	1.56	37.0
500	3.5	0.3	0.3	0.03	0.5	2.0	1.88	44.0	0.8	1.72	41.5
630	3.5	0.5	0.3	0.03	0.5	2.0	1.88	47.0	0.8	1.88	44.5
800	3.5	0.5	0.3	0.03	0.5	2.5	2.04	54.0	0.8	1.88	50.5
1000	3.6	0.5	0.3	0.03	0.6	2.5	2.20	58.5	0.8	2.04	55.0

SINGLE CORE 11 KV (E) XLPE INSULATED ARMOURED CABLES

Nom. Area	Thickness / Dimensions (mm)
	Insulation	Conductor Screen	Insulation Screen	Copper Tape	Inner Sheath	Round Wire Armoured			Flat Strip Armoured
	Insulation	Conductor Screen	Insulation Screen	Copper Tape	Inner Sheath	Armour Wire	Outer Sheath	Overall Diameter	Armour Strip	Outer Sheath	Overall Diameter
(Sqmm)	(Nom)	(Min)	(Min)	(Approx.)	(Min)	(Nom)	(Min)	(Approx.)	(Nom)	(Min)	(Approx.)
25	3.6	0.3	0.3	0.03	0.3	1.6	1.40	22.0	0.8	1.40	20.5
35	3.6	0.3	0.3	0.03	0.3	1.6	1.40	23.0	0.8	1.40	21.5
50	3.6	0.3	0.3	0.03	0.3	1.6	1.40	24.0	0.8	1.40	22.5
70	3.6	0.3	0.3	0.03	0.3	1.6	1.40	25.5	0.8	1.40	24.0
95	3.6	0.3	0.3	0.03	0.3	1.6	1.40	27.0	0.8	1.40	25.5
120	3.6	0.3	0.3	0.03	0.3	1.6	1.56	28.5	0.8	1.40	26.5
150	3.6	0.3	0.3	0.03	0.3	1.6	1.56	30.0	0.8	1.56	28.5
185	3.6	0.3	0.3	0.03	0.4	2.0	1.56	32.5	0.8	1.56	30.0
240	3.6	0.3	0.3	0.03	0.4	2.0	1.56	35.0	0.8	1.56	32.5
300	3.6	0.3	0.3	0.03	0.4	2.0	1.56	36.5	0.8	1.56	34.5
400	3.6	0.3	0.3	0.03	0.4	2.0	1.72	40.0	0.8	1.72	37.5
500	3.6	0.3	0.3	0.03	0.5	2.0	1.88	44.5	0.8	1.72	41.5
630	3.6	0.5	0.3	0.03	0.5	2.0	1.88	47.5	0.8	1.88	45.0
800	3.6	0.5	0.3	0.03	0.5	2.5	2.04	54.5	0.8	1.88	51.0
1000	3.6	0.5	0.3	0.03	0.6	2.5	2.20	58.5	0.8	2.04	55.0

SINGLE CORE 11 KV (UE) XLPE INSULATED ARMOURED CABLES

Nom. Area	Thickness / Dimensions (mm)
	Insulation	Conductor Screen	Insulation Screen	Copper Tape	Inner Sheath	Round Wire Armoured			Flat Strip Armoured
	Insulation	Conductor Screen	Insulation Screen	Copper Tape	Inner Sheath	Armour Wire	Outer Sheath	Overall Diameter	Armour Strip	Outer Sheath	Overall Diameter
(Sqmm)	(Nom)	(Min)	(Min)	(Approx.)	(Min)	(Nom)	(Min)	(Approx.)	(Nom)	(Min)	(Approx.)
25	5.5	0.3	0.3	0.03	0.3	1.6	1.40	25.5	0.8	1.40	24.0
35	5.5	0.3	0.3	0.03	0.3	1.6	1.40	26.5	0.8	1.40	25.0
50	5.5	0.3	0.3	0.03	0.3	1.6	1.56	28.0	0.8	1.40	26.0
70	5.5	0.3	0.3	0.03	0.3	1.6	1.56	29.5	0.8	1.56	28.0
95	5.5	0.3	0.3	0.03	0.3	2.0	1.56	32.0	0.8	1.56	29.5
120	5.5	0.3	0.3	0.03	0.4	2.0	1.56	33.5	0.8	1.56	31.0
150	5.5	0.3	0.3	0.03	0.4	2.0	1.56	35.0	0.8	1.56	32.5
185	5.5	0.3	0.3	0.03	0.4	2.0	1.56	36.5	0.8	1.56	34.0
240	5.5	0.3	0.3	0.03	0.4	2.0	1.72	39.0	0.8	1.56	36.5
300	5.5	0.3	0.3	0.03	0.4	2.0	1.72	41.0	0.8	1.72	38.5
400	5.5	0.3	0.3	0.03	0.5	2.0	1.88	44.5	0.8	1.72	42.0
500	5.5	0.3	0.3	0.03	0.5	2.5	2.04	49.5	0.8	1.88	46.0
630	5.5	0.5	0.3	0.03	0.5	2.5	2.04	52.5	0.8	1.88	49.0
800	5.5	0.5	0.3	0.03	0.6	2.5	2.20	59.0	0.8	2.04	55.0
1000	5.5	0.5	0.3	0.03	0.6	2.5	2.36	62.5	0.8	2.20	59.0

SINGLE CORE 22 KV (E) XLPE INSULATED ARMOURED CABLES

Nom. Area	Thickness / Dimensions (mm)
	Insulation	Conductor Screen	Insulation Screen	Copper Tape	Inner Sheath	Round Wire Armoured			Flat Strip Armoured
	Insulation	Conductor Screen	Insulation Screen	Copper Tape	Inner Sheath	Armour Wire	Outer Sheath	Overall Diameter	Armour Strip	Outer Sheath	Overall Diameter
(Sqmm)	(Nom)	(Min)	(Min)	(Approx.)	(Min)	(Nom)	(Min)	(Approx.)	(Nom)	(Min)	(Approx.)
35	6.0	0.3	0.3	0.03	0.3	1.6	1.56	27.5	0.8	1.40	26.0
50	6.0	0.3	0.3	0.03	0.3	1.6	1.56	29.0	0.8	1.56	27.0
70	6.0	0.3	0.3	0.03	0.3	1.6	1.56	30.5	0.8	1.56	29.0
95	6.0	0.3	0.3	0.03	0.4	2.0	1.56	33.0	0.8	1.56	30.5
120	6.0	0.3	0.3	0.03	0.4	2.0	1.56	34.5	0.8	1.56	32.0
150	6.0	0.3	0.3	0.03	0.4	2.0	1.56	36.0	0.8	1.56	33.5
185	6.0	0.3	0.3	0.03	0.4	2.0	1.72	38.0	0.8	1.56	35.0
240	6.0	0.3	0.3	0.03	0.4	2.0	1.72	40.0	0.8	1.56	37.5
300	6.0	0.3	0.3	0.03	0.4	2.0	1.72	42.0	0.8	1.72	39.5
400	6.0	0.3	0.3	0.03	0.5	2.0	1.88	45.5	0.8	1.88	43.0
500	6.0	0.3	0.3	0.03	0.5	2.5	2.04	50.5	0.8	1.88	47.0
630	6.0	0.5	0.3	0.03	0.5	2.5	2.04	53.5	0.8	2.04	50.0
800	6.0	0.5	0.3	0.03	0.6	2.5	2.20	60.0	0.8	2.04	56.0
1000	6.0	0.5	0.3	0.03	0.6	2.5	2.36	63.5	0.8	2.20	60.0

SINGLE CORE 33 KV (E) XLPE INSULATED ARMOURED CABLES

Nom. Area	Thickness / Dimensions (mm)
	Insulation	Conductor Screen	Insulation Screen	Copper Tape	Inner Sheath	Round Wire Armoured			Flat Strip Armoured
	Insulation	Conductor Screen	Insulation Screen	Copper Tape	Inner Sheath	Armour Wire	Outer Sheath	Overall Diameter	Armour Strip	Outer Sheath	Overall Diameter
(Sqmm)	(Nom)	(Min)	(Min)	(Approx.)	(Min)	(Nom)	(Min)	(Approx.)	(Nom)	(Min)	(Approx.)
50	8.8	0.3	0.3	0.03	0.4	2.0	1.56	35.5	0.8	1.56	33.0
70	8.8	0.3	0.3	0.03	0.4	2.0	1.56	37.0	0.8	1.56	34.5
95	8.8	0.3	0.3	0.03	0.4	2.0	1.72	39.0	0.8	1.56	36.5
120	8.8	0.3	0.3	0.03	0.4	2.0	1.72	40.5	0.8	1.72	38.0
150	8.8	0.3	0.3	0.03	0.4	2.0	1.72	41.5	0.8	1.72	39.5
185	8.8	0.3	0.3	0.03	0.5	2.0	1.88	44.0	0.8	1.72	41.0
240	8.8	0.3	0.3	0.03	0.5	2.0	1.88	46.0	0.8	1.88	44.0
300	8.8	0.3	0.3	0.03	0.5	2.5	2.04	49.5	0.8	1.88	45.5
400	8.8	0.3	0.3	0.03	0.5	2.5	2.04	52.5	0.8	2.04	49.0
500	8.8	0.3	0.3	0.03	0.6	2.5	2.20	56.5	0.8	2.04	53.0
630	8.8	0.5	0.3	0.03	0.6	2.5	2.36	60.0	0.8	2.20	56.0
800	8.8	0.5	0.3	0.03	0.6	2.5	2.36	66.0	0.8	2.36	62.5
1000	8.8	0.5	0.3	0.03	0.7	3.15	2.52	71.0	0.8	2.36	66.0

Frequently Asked Questions

What is an MV single core copper and aluminium armoured power cable used for?

This cable is used for power transmission and distribution across industries including petrochemical, fertilizer, steel, cement, metro rail projects, mining, and solar power plants. It is suitable for direct burial or for installation on trays or in ducts.

What sizes are available for this cable?

Sizes range from 25 sq mm to 1000 sq mm, in both aluminium and copper conductor options, covering voltage classes from 6.6 kV up to 33 kV.

What conductor options are available?

The conductor is a stranded compacted circular aluminium or copper conductor, so buyers can choose the material that suits their project cost and performance requirements.

What standards does this cable comply with?

This cable is manufactured to IS 7098 Part 2, IEC 60502, BS 6622, and AS 1429.1, covering both domestic Indian projects and export requirements.

What is the construction of this single core armoured cable?

The construction consists of a stranded compacted circular conductor, screened with an extruded semiconducting compound, XLPE insulated, insulation screened with an extruded semiconducting compound followed by copper tape, an extruded PVC inner sheath, a single layer of hard drawn aluminium round wire or flat strip armour, and an overall PVC Type ST2 sheath.

Can this cable be used for direct burial?

Yes, this cable is generally suitable for direct burial, and it can also be installed on cable trays or in ducts, depending on the project requirement.

Does this cable have fire performance options?

Yes, the outer sheath can be specially formulated to meet Flame Retardant, FR, Flame Retardant Low Smoke and Low Halogen, FRLSH, or Flame Retardant Low Smoke and Zero Halogen, FRLSZH, requirements.

What are the electrical advantages of this cable?

This cable offers strong electrical, thermal, and mechanical properties, giving it an enhanced continuous current carrying capacity and a good short circuit rating compared with other cable types.

What voltage classes does Dynamic Cables manufacture this cable in?

Dynamic Cables manufactures single core XLPE insulated armoured cables across 6.6 kV, 11 kV, 22 kV, and 33 kV voltage classes, with dimensional data available for each size and voltage rating on request.

How can I get a technical datasheet or quotation for this cable?

Use the Request Quote button on this page, or contact our team directly with your voltage class, conductor material, and size requirement, and our technical team will provide the relevant datasheet and a project specific quotation.
