Dynamic House Wire
DYNAMIC HOUSE WIRE

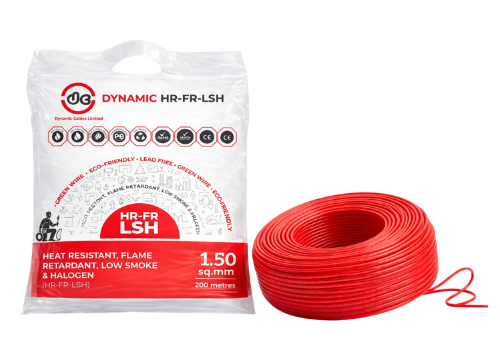

Dynamic Cables' House Wire is manufactured with 100% electrolytic grade copper (99.95% purity) and is available in FR-LSH (Flame Retardant Low Smoke & Halogen) and HR-FRLSH (Heat Resistant Flame Retardant Low Smoke & Halogen) variants.
Designed for safe and reliable use in residential, commercial, and industrial electrical installations, these wires comply with IS 694 and carry the BIS certification mark. Rated up to 1100 V with superior insulation properties for long-lasting performance.
- IS 694 – PVC Insulated Cables for Electrical Power and Lighting
- IS 8130 – Conductors for Insulated Electric Cables and Flexible Cords
- IS 5831 – PVC Insulation and Sheath of Electric Cables
- IS 10810 (Part 61) – Flame Retardant Test
- IS 10810 (Part 62) – Oxygen Index Test
- BIS (Bureau of Indian Standards) – ISI Certified Product
- RoHS & REACH Compliant – Lead-Free Eco-Friendly Insulation

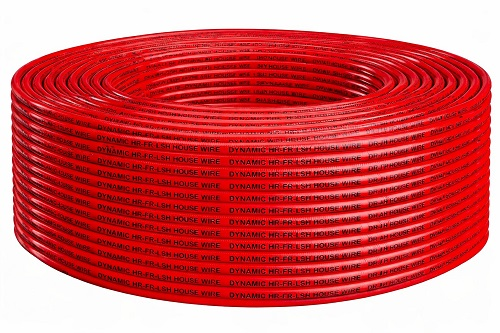

Single-core flexible copper conductor with FR-LSH / HR-FRLSH PVC insulation, available in a wide range of vibrant colours for easy circuit identification.
Conductor
100% Electrolytic Grade Copper (99.95% purity), Class 5 flexible stranded conductor as per IS 8130.
Size Range: 0.5 sq.mm to 16 sq.mm (standard); up to 25 sq.mm available on request.
Insulation
FR-LSH: Flame Retardant Low Smoke & Halogen free PVC compound with high Oxygen Index (>30%), low smoke emission, and minimal toxic gas release during fire.
HR-FRLSH: Heat Resistant (90°C) Flame Retardant Low Smoke & Halogen free PVC compound, offering superior performance in high-temperature environments.
Insulation Compound
Lead-free, RoHS and REACH compliant PVC insulation compound. Eco-friendly and safe for use in homes, offices, hospitals, and commercial buildings.
Available Colours
Red, Blue, Yellow, Green, Black, White, Grey, Brown – and other colours on request for circuit identification as per IS 694.
- 100% Electrolytic Grade Copper Conductor (99.95% purity) for superior conductivity
- FR-LSH: Flame Retardant, Low Smoke & Halogen Free insulation for enhanced safety
- HR-FRLSH: Heat Resistant (90°C) with Flame Retardant Low Smoke & Halogen Free properties
- High Oxygen Index (>30%) – significantly reduces smoke and toxic gas during fire
- Lead-Free, RoHS & REACH compliant insulation – Eco-Friendly and safe
- Class 5 Flexible Conductor for easy handling and installation in complex layouts
- BIS certified (ISI mark) as per IS 694 – guaranteed quality and safety
- Excellent resistance to heat, moisture, chemicals, and abrasion
- Wide colour range for easy phase/circuit identification
- Available in coils of 90 m, 180 m, and on reels as per requirement
- Suitable for concealed conduit wiring, open wiring, and surface wiring
- Ideal for residential, commercial, industrial, and infrastructure projects
|

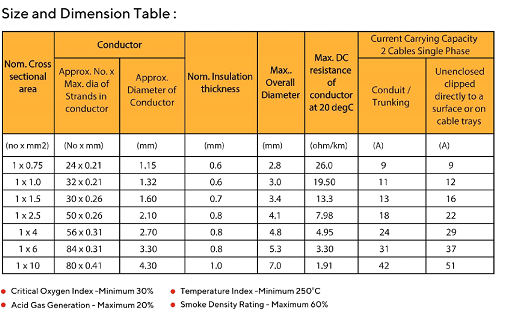

Nominal Cross-Section
(sq.mm) |
No. of Strands
|
Nominal Dia. of Each
Strand (mm) |
Nominal Insulation
Thickness (mm) |
Nominal Overall
Dia. (mm) |
Max DC Resistance @
20°C (Ω/km) |
Current Carrying
Capacity (Amps) |
|
|---|---|---|---|---|---|---|---|
FR-LSH |
HR-FRLSH |
||||||
0.5 |
16 |
0.20 |
0.6 |
2.3 |
39.0 |
39.0 |
6 |
0.75 |
24 |
0.20 |
0.6 |
2.6 |
26.0 |
26.0 |
9 |
1.0 |
32 |
0.20 |
0.6 |
2.9 |
19.5 |
19.5 |
11 |
1.5 |
30 |
0.25 |
0.7 |
3.4 |
13.3 |
13.3 |
15 |
2.5 |
50 |
0.25 |
0.8 |
4.3 |
7.98 |
7.98 |
21 |
4.0 |
56 |
0.30 |
0.8 |
5.1 |
4.95 |
4.95 |
28 |
6.0 |
84 |
0.30 |
0.8 |
5.9 |
3.30 |
3.30 |
36 |
10.0 |
80 |
0.40 |
1.0 |
7.5 |
1.95 |
1.95 |
50 |
16.0 |
126 |
0.40 |
1.0 |
8.8 |
1.21 |
1.21 |
68 |
25.0 |
196 |
0.40 |
1.2 |
10.8 |
0.780 |
0.780 |
89 |
Note:
1. All values are nominal and subject to correction based on actual design.
2. COLOURS – Red, Blue, Yellow, Green, Black, White, Grey, Brown and other colours available on request as per IS 694.
3. Packing – Available in coils of 90 m and 180 m. Special reel lengths available on request.
4. *Current Carrying Capacity (Ampacity) values are indicative as per IS 694 and may vary based on installation conditions.
Technical Specifications
| Voltage Rating | 1100 V |
| Temperature Rating | 70°C (FR-LSH) / 90°C (HR-FRLSH) |
| Conductor Material | 100% Electrolytic Grade Copper (99.95% purity), Class 5 Flexible as per IS 8130 |
| Insulation Type | FR-LSH (Flame Retardant Low Smoke & Halogen) / HR-FRLSH (Heat Resistant FR-LSH) PVC |
| Compliance / Standard | IS 694 – BIS (ISI Mark) Certified |
| Conductor Size Range | 0.5 sq.mm to 25 sq.mm |
| Oxygen Index | >30% (Low Smoke, Low Halogen) |
| Insulation Compound | Lead-Free, RoHS & REACH Compliant eco-friendly PVC |
| Available Colours | Red, Blue, Yellow, Green, Black, White, Grey, Brown (as per IS 694) |
| Application | Concealed conduit, open wiring, and surface wiring for residential, commercial, and industrial buildings |
