Lv Pvc Cable

Low Voltage PVC Cables

Low Voltage cables are used to supply power to large motors and other industrial equipments. These cables are manufactured for a voltage range of 1kV to 3.3kV for IEC and BS specifications.

Application

  • Electrical power, lighting and internal wiring in households, industrial and administrative buildings, agricultural premises, switchgear and distribution boards

LV-PVC Cable Operating Characteristics

1. Max. Conductor Temperature for continuous operation : 70°C
2. Ambient Air Temperature : 40°C
3. Standard Ground Temperature : 30°C
4. Thermal Resistivity of Soil : 150°C CM/Watt
5. Thermal Resistivity of PVC : 650°C CM/Watt
6. Depth of Laying (for Cables laid direct in ground) : 75 CM
7. Types of Installation
  1. Multi Core Cable - Installed Single
  2. Single Core Cable - Three Cable in trefoil touching each other


LV-PVC Cable Product Code (As Per IS:1554 Part-I)

Constituent Code
AIuminium Conductor A
PVC Insulation Y
Round Steel Wire W
FIat Steel Strip Armour F
Double Round Steel Wire Armour WW
Double Flat Steel Strip Armour FF
Non Magnetic (Al) Round Wire Armour WA
Non Magnetic (Al) Strip Armour FA
PVC Outer Sheath  Y

Specifications

  • LV PVC Cables manufactured by Dynamic Cables meets the requirements of all international standards like ASTM, BS, IEC, NFC, etc.
  • We can manufacture & supply LV PVC cables on Non-returnable wooden/steel reels or Returnable steel reels.

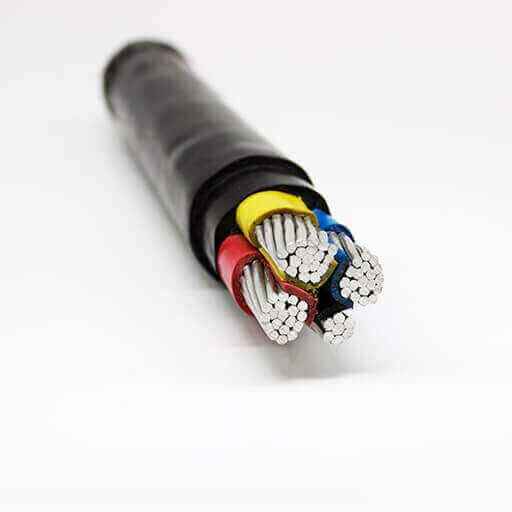

Product Gallery
